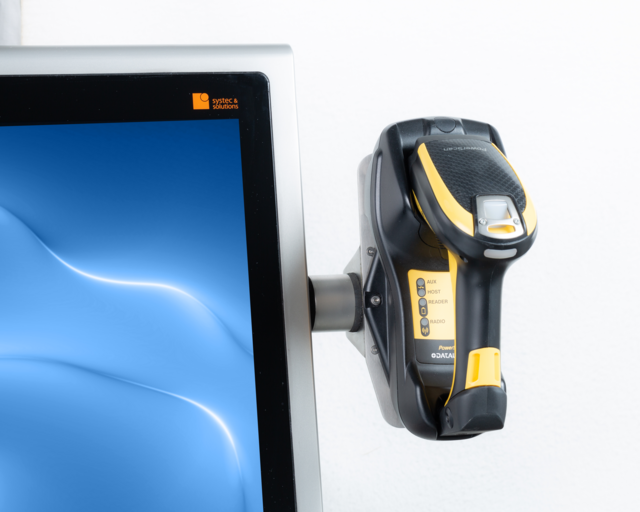

HMI SYSTEM CONTROL

THE FITTED PANEL FOR OPTIMIZED INTEGRATION INTO WALLS OF CLEAN ROOMS AND GMP ENVIRONMENTS

The CONTROL HMI system is a particularly space-saving and easy to clean option for integration into walls, machines and switch cabinets. Mounting can be carried out flush-mounted from the front or particularly flexibly using a stainless steel front plate. The optional stainless steel protective liner on the rear provides optimum cable management and maintains clean room status. All variants conform to IP65 on the front.

Operation is intuitive via an optically bonded PCT multi-touch display that offers high color accuracy, distinct color presentation and virtually unrestricted viewing angles. It is ideally suitable for the display of MES software, ERP and process control systems.

In particular, the fitted panel is distinguished by its shallow installation depth.

EASY CLICK MAGNETIC MOUNT

Simple, faster & safe! The specially developed magnetic holder of the HMI system offers outstanding installation advantages.

PRECONFIGURED SYSTEMS SAVE COSTS AND OFFER FAST PROCESSING TIMES

HMI STANDARD VARIANTS
Based on many years of experience of our customer projects in the GMP sector, we have put together four standard variants of our HMI systems. These are perfectly tailored to the specific requirements of your main application. This helps you to quickly identify the exact system that is right for you, and opens the door to a whole host of benefits.

CONTROL 317pic. similar

CONTROL 317

More details
CONTROL 321pic. similar

CONTROL 321

More details
CONTROL 324pic. similar

CONTROL 324

More details
CONTROL 332pic. similar

CONTROL 332

More details
CONTROL 317pic. similar

CONTROL 317

More details
CONTROL 321pic. similar

CONTROL 321

More details
CONTROL 324pic. similar

CONTROL 324

More details
CONTROL 332pic. similar

CONTROL 332

More details
  • Ideal for integration in walls in GMP environments and cleanrooms
  • Easy mounting thanks to EASY CLICK MAGNETIC MOUNT.
  • For flush-mounting in a wall or surface mounting on the wall. Optional rear protection tray available.
  • Less cleaning work required thanks to front design in accordance with protection class IP65
  • Suitable for regular cleaning with disinfectants and cleaning agents
  • 17"/21.5"/24"/32" LCD display with LED backlight technology
  • Intuitive multi-touch display with optical bonding. Operable with cleanroom gloves.
  • Non-reflecting PCT display. IPS panel with up to 178° viewing angle from all sides.
  • Available as industrial PC, industrial monitor, thin client (e.g. IGEL or ThinManager).
  • Available as preconfigured HMI standard variants.
IP65 STAINLESS STEEL TOUCHPENpic. similar

IP65 STAINLESS STEEL TOUCHPEN

Optionally with stainless steel holder and/or cable for attachment to HMI. Exchangeable tip for touchpen.
More details

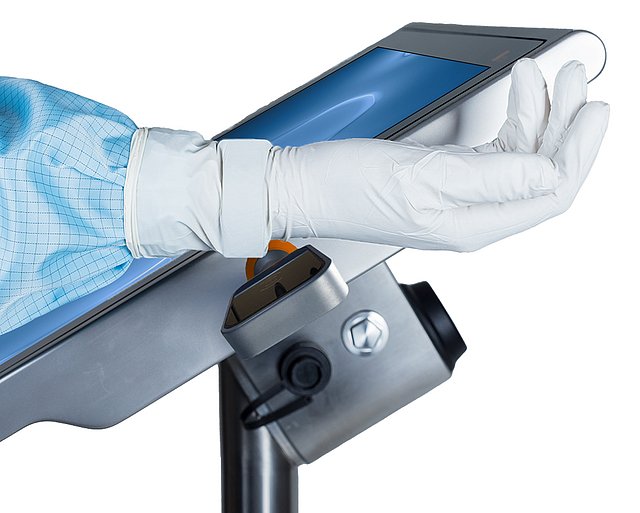

CONNECT BOX FMpic. similar

CONNECT BOX FM

for flush-mounted installation with or without stainless steel frame
More details
IP65 STAINLESS STEEL TOUCHPENpic. similar

IP65 STAINLESS STEEL TOUCHPEN

Optionally with stainless steel holder and/or cable for attachment to HMI. Exchangeable tip for touchpen.
More details
CONNECT BOX FMpic. similar

CONNECT BOX FM

for flush-mounted installation with or without stainless steel frame
More details
ModelCONTROL 317CONTROL 321CONTROL 324CONTROL 332
VariantsIndustrial PC, Thin Client, Monitor
DesignBuilt-in unit for flush mounting as standard or flexible mounting with optional front panel.
Displays and ControlsCONTROL 317CONTROL 321CONTROL 324CONTROL 332
Display17.3" TN-LCD display (16:9), LED backlight21.5'' IPS LCD display (16:9) with approx. 178° viewing angle, LED backlight24" IPS LCD display (16:9) with approx. 178° viewing angle, LED backlight32" LCD display (16:9), with approx. 178° viewing angle, LED backlight
Resolution1920 x 1080 Full HD1920 x 1080 Full HD1920 x 1080 Full HD3840 x 2160 UHD
TouchscreenAnti-glare PCT (projected capacitive) multi-touch with optical bonding
ConfigurationsCONTROL 317CONTROL 321CONTROL 324CONTROL 332
Industrial PCIntel® Celeron® N2930 1,83 GHz / Burst 2,16 GHz, quad-core
Intel® Core TM i3-7100U (7th gen.) 2,40 GHz, Dual-Core
Intel® Core TM i5-7300U (7th gen.) 2,6 GHz / Turbo 3,5 GHz, Dual-Core
Intel® Core TM i7-8665UE (8th gen.) 1,7 GHz / Turbo 4,4 GHz, Quad-Core
Operating systemsWindows® 10, (Android, Linux, Windows® 10 Enterprise LTSB/LTSC and others upon request)
System memory4 GB to 16 GB DDR4 (DDR3 at Celeron)
Storage capacity128 GB SSD; additional memory sizes upon request
I/O Interfaces1-4x USB 3.0, 1-6x USB 2.0, 1-2x Gigabit Ethernet, 1-3x RS 232, additional interfaces upon request
Equipment PC (optional)Dual-band WLAN, Bluetooth®, RFID/NFC/Smartcard reader (compatible with Nymi Band), speaker, upon request: webcam, microphone
Thin ClientThin Client (e.g. IGEL or ThinManager) for sessions of Microsoft (RDP), VMware, Citrix, VNC and others
Industrial monitorDisplayPort and DVIDVI and VGA
Equipment monitor (optional)RFID/NFC/Smartcard reader (compatible with Nymi Band), speaker, upon request: webcam, microphone
Physical CharacteristicsCONTROL 317CONTROL 321CONTROL 324CONTROL 332
Power supply100 - 240 V AC, 50 - 60 Hz, or 9 - 36 V DC
Power consumption20 W (industrial monitor)
35 - 50 W (IPC, depending on configuration)
30 W (industrial monitor)
65 - 80 W (IPC, depending on configuration)
45 W (industrial monitor)
65 - 80 W (IPC, depending on configuration)
50 W (industrial monitor)
65 - 90 W (IPC, depending on configuration)
Dimensions (approx. mm)
Front frame CONTROLW 504 / H 337W 616 / H 416W 673 / H 470W 870 / H 552
Mounting depthD 55 / D 40 (optional for DC devices)D 66
WeightApprox. 9 kgApprox. 11 kgApprox. 12 kgApprox. 20 kg
Front plate CONTROLStainless steel, 1.4404 (AISI 316L), brushed
Front-side surfaceToughened glass
CertificationCE, FCC / ISED (optional)
IP ratingIP65 front side, optional IP65 rear side with protection tray.
FeaturesMagnetic mount EASY CLICK MAGNETIC MOUNT
CONTROL
CONTROL
CONTROL
CONTROL
CONTROL
CONTROL
CONTROL
CONTROL
CONTROL
CONTROL
CONTROL
CONTROL
CONTROL
CONTROL
CONTROL
CONTROL
CONTROL
CONTROL
CONTROL

flush mounted in cleanroom wall

CONTROL

flush mounted in cleanroom wall

CONTROL

Clean room single panel with front panel

CONTROL

portrait format

CONTROL

CONTROL single panel for cleanrooms with Keyboard

CONTROL

PCT multi touch display with optical bonding

CONTROL

easy to clean

CONTROL

Small installation depth. An optional protective tray maintains cleanroom status.

CONTROL

Detailview
