Support arm solutions

TUBE MOUNTING SOLUTION

Flexible support arm systems for any cleanroom environment: direct ceiling, wall, floor or table mounting.
Support arm system versions

Smooth transitions

Smooth transitions between the individual components make cleaning much easier. Made entirely of stainless steel, all mounting options comply with IP65.

Support arms | Versions for wall mounting

Individual & flexible

Countless installation and combination options for almost any room situation. Configure your individual system with the right accessories for your requirements. Our ergonomic solutions also include dual display options in vertical or horizontal orientation.

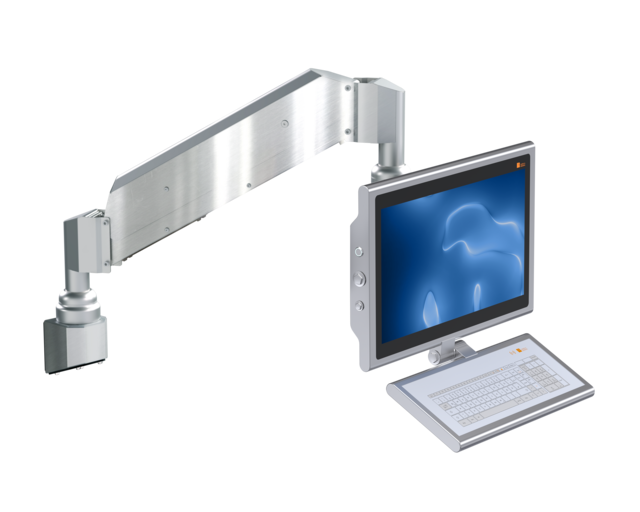

Wave mounted on support arm

The right solution for every situation

Wide range of reliable mounting options available, customized modifications and designs on request.

Ready for assembly

You are sure to find the best solution for your particular situation among the wide choice of options available, ranging from fixed installation to rotating and swiveling systems.
Dual-display solutions in vertical or horizontal arrangement are possible along with direct mounting on a wall, ceiling, floor, or bench. Smooth transitions between the individual components make cleaning much easier.
Made entirely of stainless steel, all mounting options comply with IP65.

3D-Model

EXAMPLES OF STANDING ASSEMBLY OPTIONS

Support arm solutions | U-tube for wall mounting
U-tube for wall mounting, swiveling, and up to 350-degree rotation
Support arm | L-tube for wall mounting
L-tube for wall mounting, up to 350-degree rotation
Support arm solutions | 2-point attachment for wall mounting
2-point attachment for wall mounting, up to 350-degree rotation
Support arm | Horizontal duplex system for two HMI systems
Horizontal duplex system for two HMI systems, rotating and tilting
Support arm | Vertical duplex system for two HMI systems
Vertical duplex system for two HMI systems, up to 350-degree rotation
Support arm solution | Bench mounting with stainless steel bench panel
Bench mounting with stainless steel bench panel, up to 350-degree rotation
Support arm | Stand/bench mounting with flange
Stand/bench mounting with flange, up to 350-degree rotation

ALL ADVANTAGES AT A GLANCE

  • For optimum integration of IT systems in GMP environments and cleanrooms
  • Less cleaning work required thanks to fully encapsulated design of stainless steel casing in accordance with protection class IP65
  • Suitable for regular cleaning with disinfectants and cleaning agents
  • HMI systems can be fitted in horizontal or upright position
  • Particularly ergonomic due to rotating and swivel mounting
  • Wide range of reliable mounting options available, customized modifications and designs on request

Compatible with
