PILOT | 21"

Technical specifications for PILOT 221
and available standard­versions

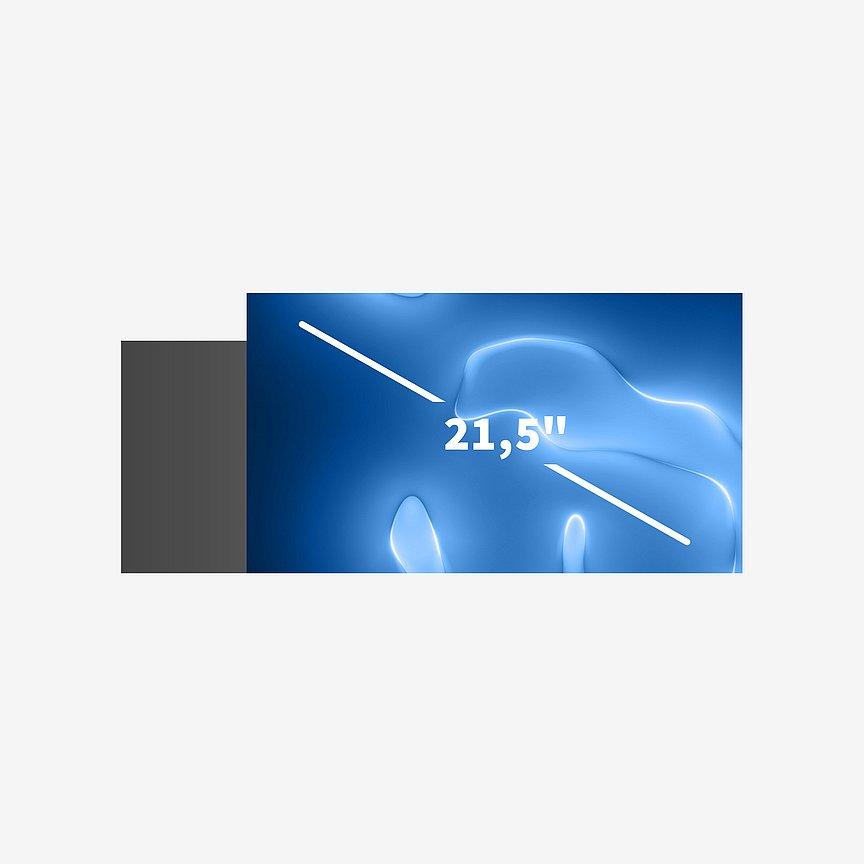

PILOT 221 – 21.5"

DisplayResolutionTouchscreenDimensionsWeightCasing
21.5" IPS LCD display (16:9) with a viewing angle of approx. 178°, LED backlight1920 × 1080 full HDPCT (projected capacitive) multi-touch with optical bonding and laminated polyester membrane on the front (non-reflecting/shatter-proof)W 570 / H 367 / D 55approx. 11 kgStainless steel 1.4404



Versions

We have put together three standard versions of our HMI systems, based on our many years of experience from customer projects in the GMP sector. These are perfectly tailored to the specific requirements of your main application and are inexpensive and efficient.
Our standard versions don’t match your requirements? No problem. Individual specifications are, of course, possible at any time. If you have special requirements, contact our experts.

 ENDPOINTALLROUNDPERFORMANCE
 For virtualized server-based solutions via Microsoft TSE/RDP, Citrix, etc.Meets all the requirements for an MES system in the life sciences sector.High-performance equipment for exceptional performance and interface requirements.
 available for all PILOT modelsavailable for all PILOT modelsavailable for all PILOT models
Basic
 128 GB SSD128 GB SSD256 GB SSD
 8 GB RAM8 GB RAM16 GB RAM
 Intel® Celeron® J6412 2.00 GHz / Burst 2.60 GHz, Quad-CoreIntel® CoreTM i5-1145G7E (11th gen.) 1.5 GHz / Turbo 4.1 GHz, Quad-CoreIntel® CoreTM i7-1185G7E (11th gen.) 1.8 GHz / Turbo 4.4 GHz, Quad-Core
 PCT multi-touch with optical bondingPCT multi-touch with optical bondingPCT multi-touch with optical bonding
 2 × USB2 × USB4 × USB
 2 × Gigabit Ethernet2 × Gigabit Ethernet2 × Gigabit Ethernet
 1 × Bluetooth1 × Bluetooth1 × Bluetooth
 ----1 × DisplayPort
Operating systems
Windows 10 / 11







IGEL endpoint OS







ThinManager Ready







Options
CLICK HINGE: Glass or membrane keyboard







Accessory connector: Interface for scanner cradle, CONNECT BOX / RFID etc.







BLE for Nymi







RFID/NFC/smart card reader: Integrated with PILOT / WAVE with CONNECT BOX







Forked scanner holder for wired or Bluetooth scanners







AC power supply







DC power supply







Bundles
Duplex bundle: External DisplayPort monitor interface (1x HDMI for ENDPOINT or 1x DisplayPort for ALLROUND), 2x additional USB (touchscreen + accessories)







Storage upgrade: 256 GB SSD/16 GB RAM









Can’t find the right solution?

Contact us – we will be happy to advise you on your individual configuration.
