Surface tablet

The ideal tablets for cleanrooms with very strict hygiene requirements. Developed to comply with GMP requirements, their enclosed stainless steel housing complies with protection class IP65 and has no dead zones.
External buttons for operation such as volume and power on/off, USB-C interface. The usual Office applications run on the tablet thanks to its WINDOWS® operating system.

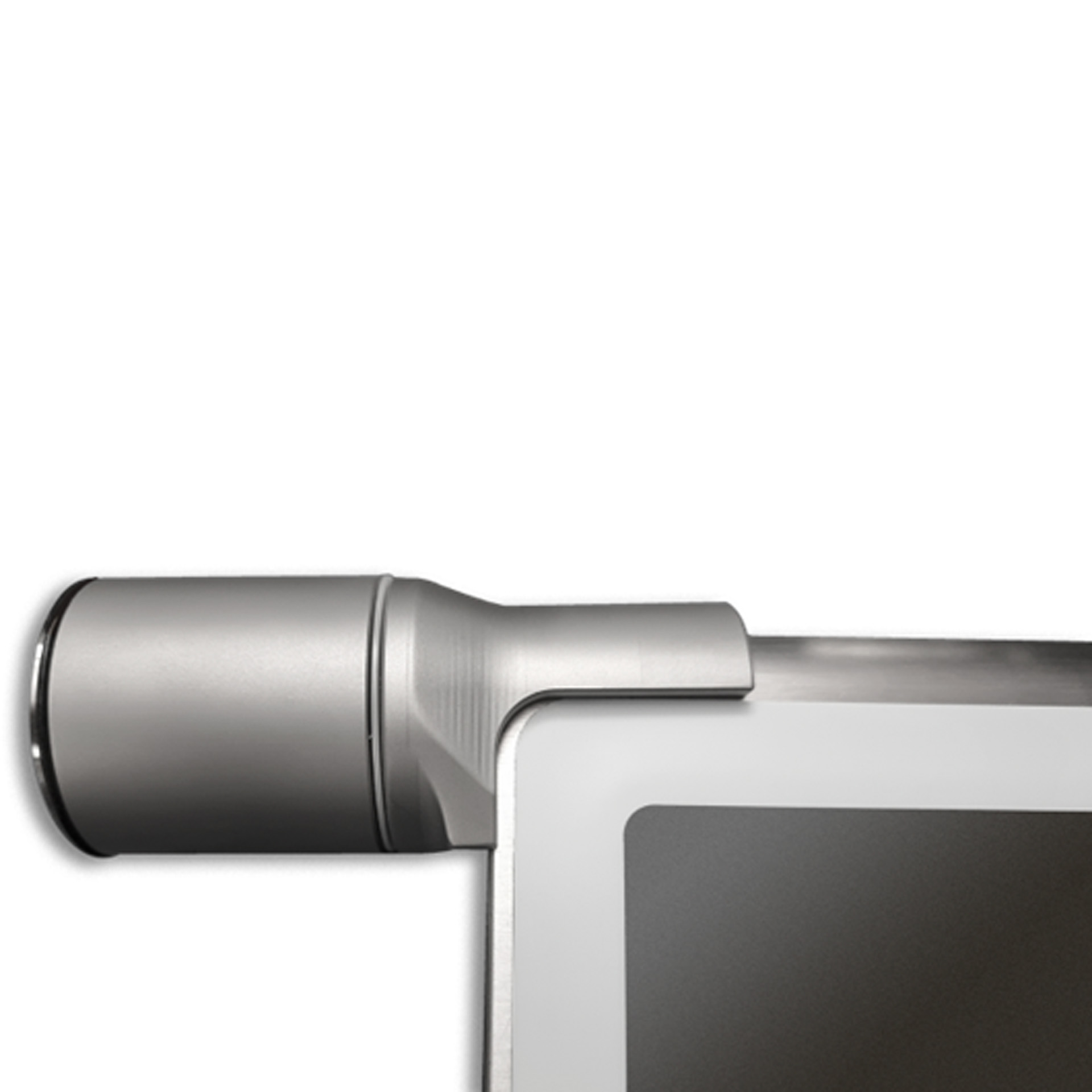

Tablet – Docking Hinge

The New Docking Hinge

Patented technology: The tablet can easily be pushed onto the holder. The integrated CLEANROOM CONNECTOR with USB-C means it can be charged and operated at the same time (patent pending).

Tablet Surface - Cleanroom Connector

Cleanroom Connector

Flush-mounted IP65 magnetic charging contact for cleanroom-compliant charging and data transmission.

Tablet – Surface Pro with front and rear camera

Front and rear camera

Our SURFACE-based model features two powerful cameras. Ideal for scanning barcodes or QR codes and for using images for documentation, for example.

CONNECT BOX for TABLET

Regular logins in accordance with 21 CFR Part 11 cost time and pose security risks. Electronic or biometric authentication solutions such as RFID cards or the Nymi Band enable fast and secure working, reduce errors and save time. The CONNECT BOX for the Surface Pro 8 is an integrated RFID/NFD/Smartcard reader for the Nymi Band.

3D-Model

Accessories for Surface

Edelstahl-Halter

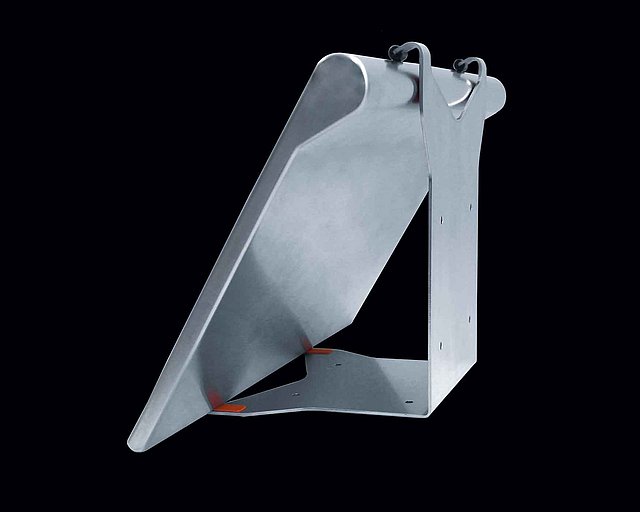

Stainless steel holder
Stainless steel handle
Accessories | IP65 stainless steel touch pen with interchangeable tip
STAINLESS STEEL TOUCH PEN
Netzteil mit Edelstahlgehäuse
Power supply unit with stainless steel casing
USB interface for CLEANROOM CONNECTOR

Technical specifications

ModelSurface stainless steel TABLET
ManufacturerMicrosoft Surface Pro
Product descriptionTablet with stainless steel casing
Display13"
ConfigurationExternal buttons for operating the volume and power on/off, magnetic service USB port with IP65 cover, flush CLEANROOM CONNECTOR for power supply
Operating systemWindows® 10
AccessoriesDOCKING HINGE for wall mounting, handle, tablet holder with VESA hole pattern (75x75 mm) for attaching to support arm systems, on benches or on the wall, cleanroom touch pen, USB interface (adapter for CLEANROOM CONNECTOR to USB type A socket)
Power supplyVia CLEANROOM CONNECTOR using external USB power supply unit with USB power delivery
Dimensions
(approx. mm)
W 318 / H 248 / D 12.5 – 30
Weightapprox. 1.8 kg
CasingStainless steel 1.4404
Protection classIP65

    Can’t find the right solution?

    Contact us – we will be happy to advise you on your individual configuration.
